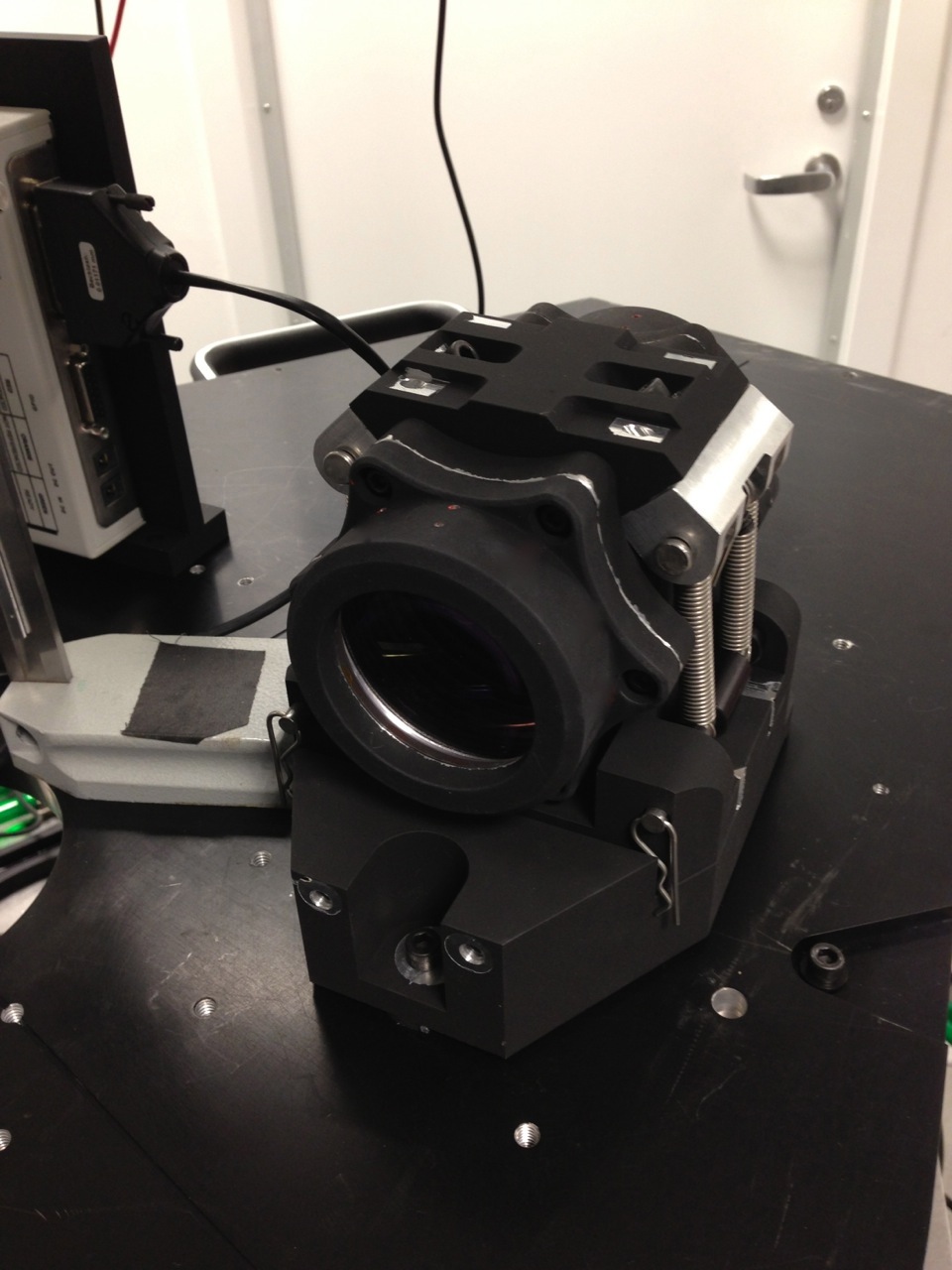

SED Machine Assembled Camera

The SED Machine camera (120-mm f/5.5) operates over a pretty broad wavelength range (360 nm — 1000 nm) and delivers absolutely beautiful images.

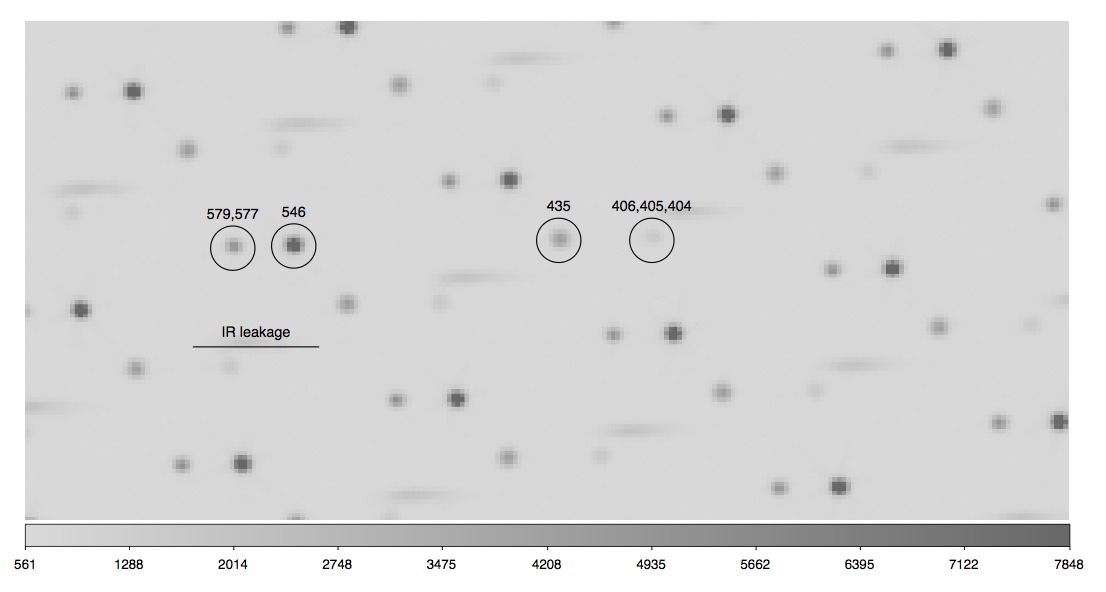

It’s a Petzval-like lens with an external (real) pupil about one camera focal length in front. The designed images were achieved (as can be seen from this mercury-lamp spectrum:

Mercury lamp spectrum
